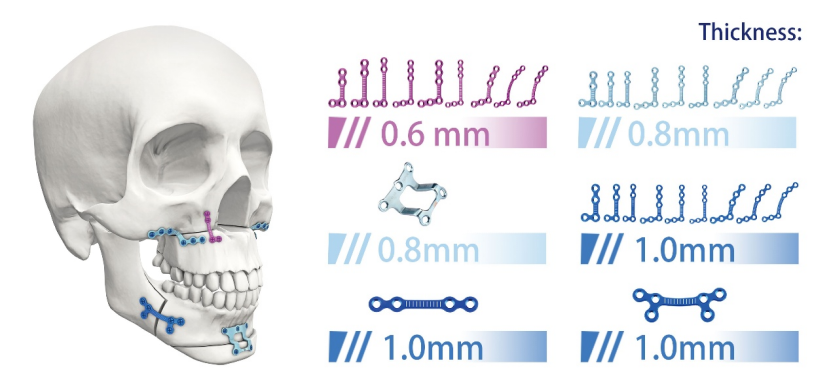

0.6mm Thickness Orthognathic Series Anatomical L-plate Titanium Maxillofacial Plate（6 holes）

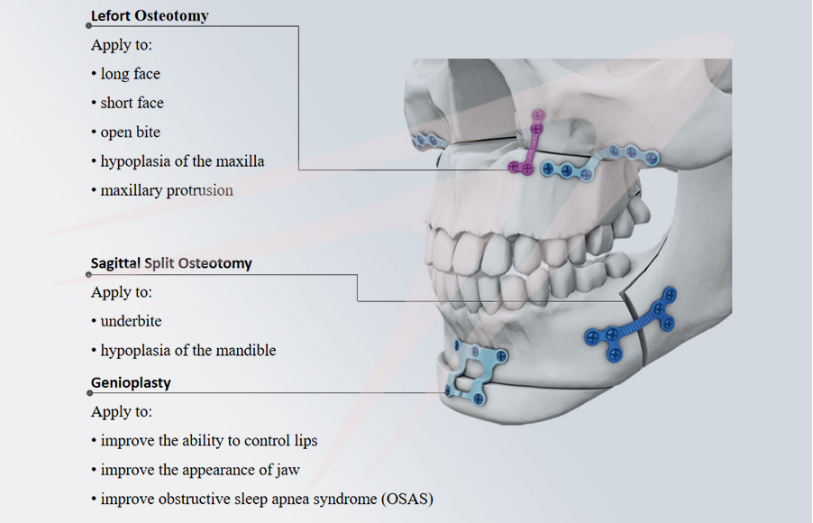

Orthognathic Internal Fixation Series

1.Connect rod part of plate has line etching in every 1mm, easy moulding

2.Different product with different color, convenient for clinician operation

Product Indication:

Orthognathic Series Anatomical L-plate 6 holes

Technical Specifications：

Item No. Specification 10.01.07.06113004 S ( Left ) 18mm 10.01.07.06213004 S ( Right) 18mm 10.01.07.06113008 M ( Left ) 20mm 10.01.07.06213008 M ( Right) 20mm 10.01.07.06113012 L ( Left ) 22mm 10.01.07.06213012 L ( Right) 22mm

Features & Benefits:

1.Shuangyang Smart Fixation system brings to you the most advanced

maxillofacial system comprising of the most enhanced screw retention

technology.

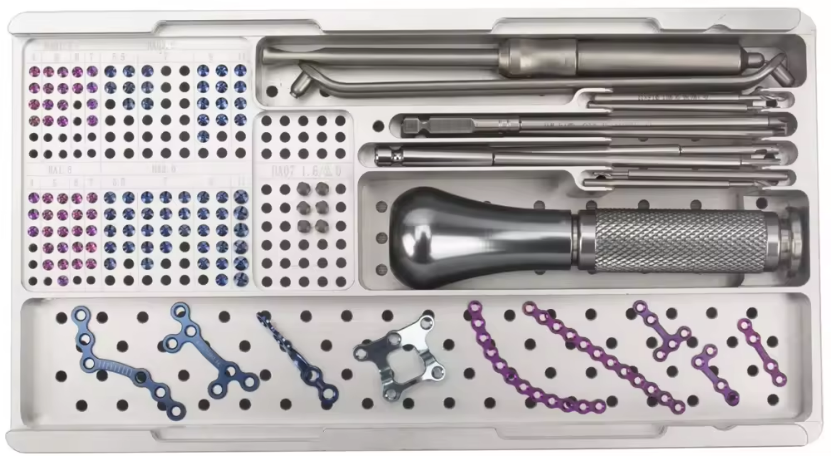

2.The Shuangyang maxillofacial kit consists of plates, screws and instrumentation used for fixation of craniofacial, midface and mandibular fractures or correction surgeries.

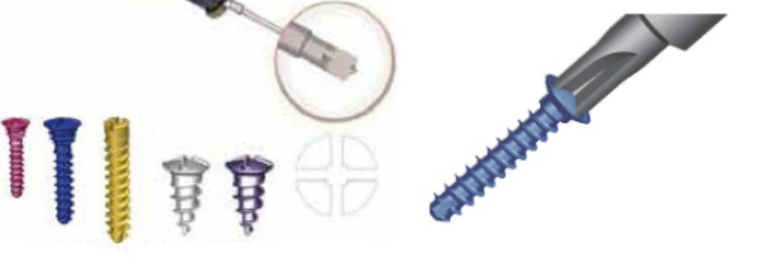

Matching screw:

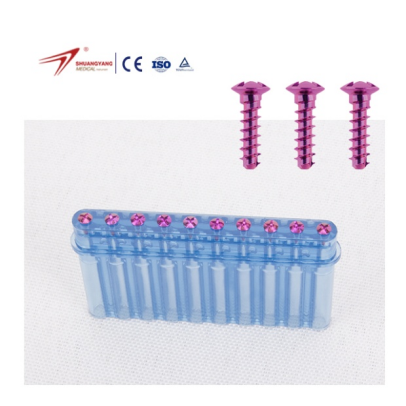

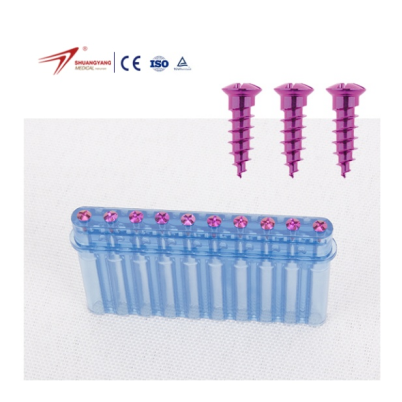

Φ1.5mm self-drilling screw	φ1.5mm self-tapping screw

Medical Screw Advantages：

• An excellent grip on the bone

• Selfdrilling and Selftapping screws

• Self holding screw for Improved pick-up performance

• Improved off-axis stability during insertion

• Lower profile height of screw head

• Improved insertion of self-drilling screws

Matching instrument:

medical drill bit φ1.1*8.5*48mm

cross head screw driver: SW0.5*2.8*95mm

straight quick coupling handle

Customer Customization：

Our Production Process：

Raw Materials	Product Designs	Product Testing
Production workshop	Sand and Polish	Ultrasonic Washing
Oxidation workshop	Product Inspection	Aseptic Packaging

Certificate

Exhibition

Customer Feedback

Packaging and Shipping

Packing Details: inner dialyzing paper + outer plastic bag along with carton box. Or based on client's requirement.

Delivery Details: within 3 -5 working days, the customized product to be negotiated.

Delivery way: by air, FedEx / UPS / DHL / EMS / TNT...

About Us

Introduction & History

Jiangsu Shuangyang Medical Instrument Co., Ltd was founded in 2001, which is specialized in product research, design and manufacturing of orthopedic implant instruments.

Our factory covers total area of 1 8 0 0 0 square meters. We are equipped with DMG five-axis CNC machine, TORNOS CNC longitudinal cutting lathe and other advanced equipments. Meanwhile, we have complete testing equipment including digital projector, fluorescence detector and electronic torsion machine. Based on our advanced machines and processing technology, we can deliver stable and good quality goods to our customers without any delay.

We have passed CE and ISO13485:2016, ISO9001:2015 certification. Besides all of these honored certificates, we pay more attention on our customer's satisfaction, our products have been recognized by doctors, patients and hospitals for the reliability, thoughtfulness, easy usage and effectiveness to shorten the healing period.

Shuangyang company has a motto: Integrity is the base, Customer is the first, we are striving to be the leading supplier of orthopedic medical devices in China and looking forward to working with more valued customers worldwide. Welcome to visit our company at your convenient time.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer with 20+ years experience for R & D, produce, sale and service of Orthopedic implants.

Q: How long is your delivery time?

A: Generally, it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock. Customized goods depend on the specific requirements.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: Why Shuangyang will be your reliable supplier in Orthopedic field in China?

A: We are the FIRST MANUFACTURE who got certificate of MULTI-AXIAL LOCKING PLATE in CHINA!

1.Experience: 20 years for manufacturing orthopedic implants

2. Professional CNC Turning & Mahining: TORNOS(Switzerland), DMG 5-axis(Germany)

3. Certificate: CE/ISO9001/ISO13485/GMP

4. Feedback: Quick feedback within 12 hours

5. Before & After sales Service: Excellent service all the time

6.Technology: Professional technicians, provide OEM & ODM service (personalized customization is available)

Introduction

Oral and maxillofacial injuries commonly result from occupational accidents, sports trauma, traffic collisions, and other daily life incidents. This region features a rich vascular network, close proximity to the brain and neck, and serves as the entrance to both the respiratory and digestive tracts. It consists of multiple bones and sinus cavities, with teeth embedded in the jawbones and the tongue housed within the oral cavity. The face also contains mimetic muscles and the facial nerve, along with the temporomandibular joint and salivary glands—all essential for expression, speech, mastication, swallowing, and respiration.

Fixation following the reduction of maxillofacial fractures is a critical phase of treatment. Common fixation approaches include single-jaw arch splinting, intermaxillary fixation, interosseous wiring, miniplate or microplate osteosynthesis, and craniomandibular fixation. Additional methods such as circummandibular wiring and compression plating may also be employed.

• Single-Jaw Arch Splint Fixation: A pre-formed or custom-shaped arch splint (2 mm aluminum wire or ready-made hook-equipped splint) is ligated to the teeth on both sides of the fracture using fine stainless steel wires. This approach is suitable for non-displaced or minimally displaced fractures, such as midface linear fractures or localized alveolar fractures.
• Intermaxillary Fixation: Hooked arch splints are applied to both the upper and lower dental arches. Elastic bands or wires are used to maintain the jaws in normal occlusal position. This reliable method suits various mandibular fractures, ensuring proper healing and functional recovery. Drawbacks include limited oral intake and challenges in maintaining oral hygiene, requiring attentive nursing care.
• Interosseous Wiring Fixation: During open reduction, holes are drilled into the fracture ends, which are then secured with stainless steel wires. This offers reliable stabilization and is also applicable in pediatric jaw fractures or edentulous cases.
• Miniplate or Microplate Fixation: After open reduction, a suitably shaped miniplate (for the mandible) or microplate (for the maxilla) is placed across the fracture line. Special screws secure the plate to the bone cortex, providing rigid internal fixation.
• Cranio-Maxillofacial Fixation: In cases of maxillary transverse fracture where mandibular support is insufficient, the skull can serve as an anchor. An arch bar is attached to the maxillary teeth, connected via wires that pass through the zygomatic soft tissues to a headcap or external frame. This is often combined with intermaxillary fixation.

The duration of fixation depends on the patient's injury, age, and overall condition. Typically, maxillary fractures are immobilized for 3–4 weeks, and mandibular fractures for 4–8 weeks. A dynamic-static approach can shorten fixation time: after 2–3 weeks of rigid fixation, elastics may be removed during meals to allow guided motion. With rigid internal fixation using miniplates or microplates, early functional exercise can be initiated to support healing.
