Calcaneal locking plate

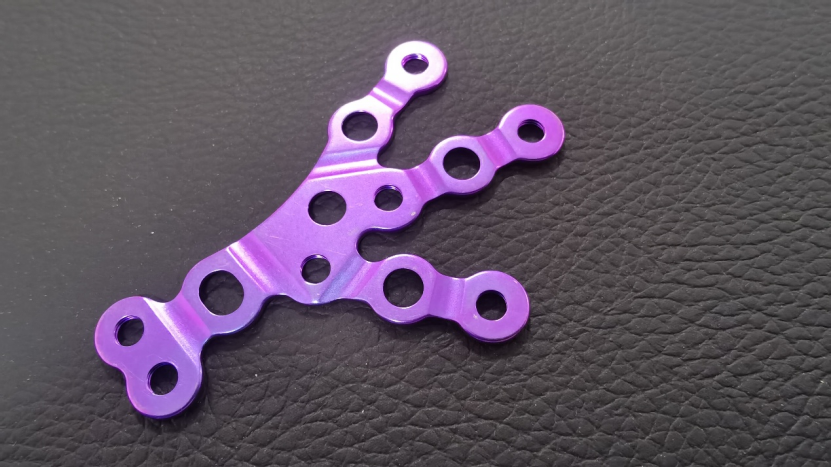

Calcaneal Locking Plate-Claw Type

Orthopedic implants of calcaneal locking plate we have three types: claw type, loop type and flat type to meet complex fractures of the calcaneus.

Used for Φ4.0 cancellous screw,Φ3.0 locking screw,Φ3.0 cortex screw, matched with 3.0 series surgical instrument set.

Technical Specifications：

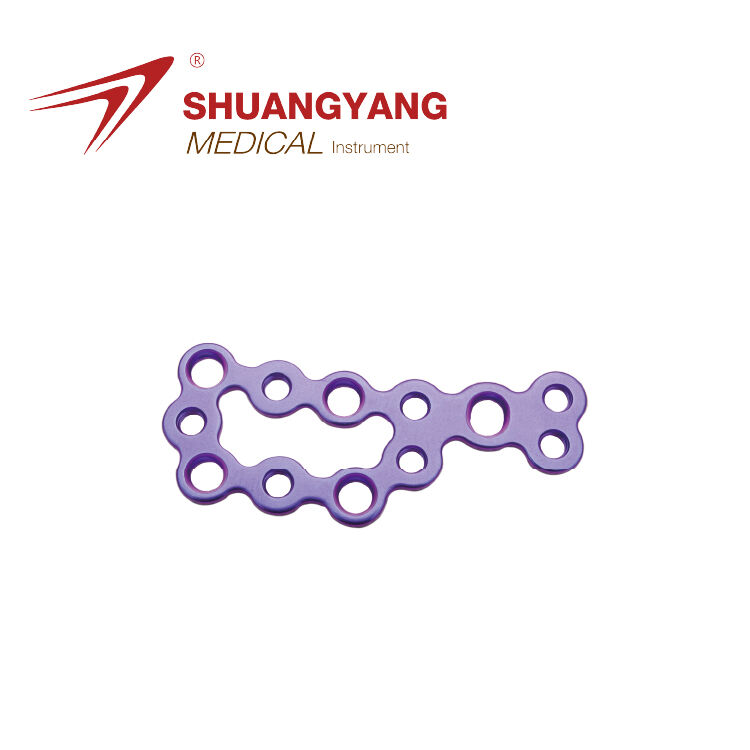

Calcaneal Locking Plate-Loop Type

Implants of calcaneal locking plate we have three types: claw type, loop type and flat type to meet complex fractures of the calcaneus.

Used for Φ4.0 cancellous screw,Φ3.0 locking screw,Φ3.0 cortex screw, matched with 3.0 series surgical instrument set.

Technical Specifications：

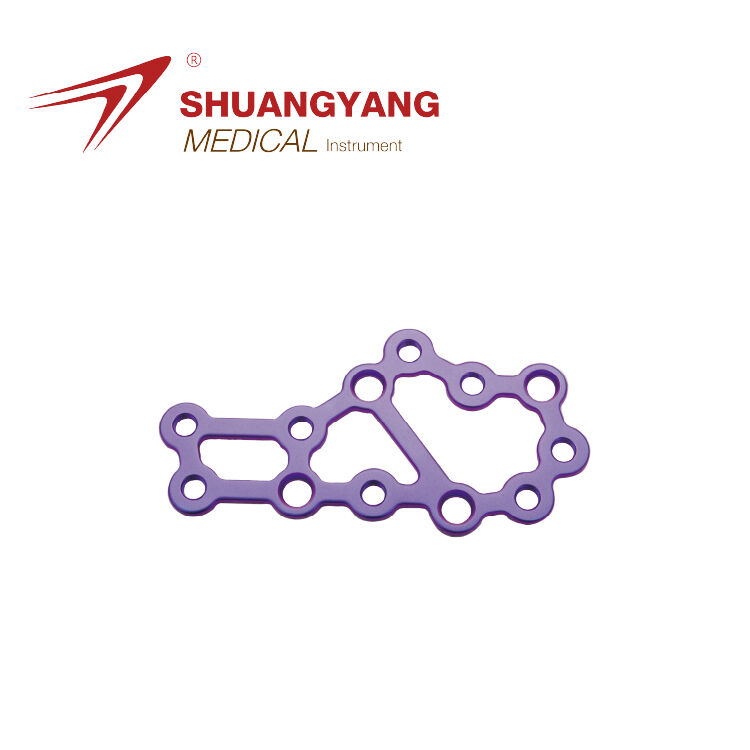

Calcaneal Locking Plate-Flat Type

Orthopedic trauma implants of calcaneal locking plate we have three types: claw type, loop type and flat type to meet different parts of calcaneus fractures

Used for Φ4.0 cancellous screw,Φ3.0 locking screw,Φ3.0 cortex screw, matched with 3.0 series surgical instrument set.

Technical Specifications：

Advantages and Features of the Pure Titanium Calcaneal Locking Plate

• ‌Superior Biocompatibility‌
  Made from high-purity titanium, this locking plate exhibits excellent osseointegration and minimal risk of allergic reactions, ensuring long-term compatibility with human bone tissue.
• ‌Enhanced Mechanical Strength‌
  The titanium alloy provides optimal rigidity and fracture resistance, effectively preventing screw loosening or plate failure even in osteoporotic bone conditions.
• ‌Low-Profile Design‌
  Its anatomical contouring reduces soft tissue irritation while maintaining stability for distal radius fractures, promoting early functional rehabilitation.
• ‌Corrosion Resistance‌
  Titanium's inherent durability in physiological environments guarantees structural integrity throughout the healing process.
• ‌Dual Column Support‌
  Engineered with multi-angle locking screw options, it offers adaptable fixation for complex fracture patterns
• ‌Minimally Invasive Application‌
  Lightweight construction and reduced surgical trauma facilitate quicker recovery compared to conventional steel implants.
• Imaging-Friendly Material‌
  Pure titanium ensures clear postoperative evaluation via X-ray without artifacts, aiding in monitoring bone consolidation.

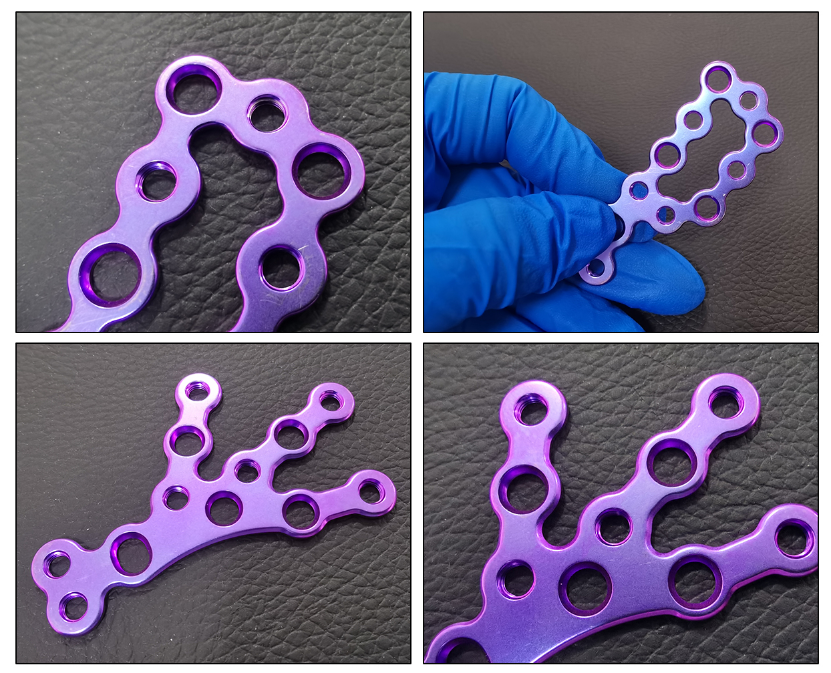

Detail image

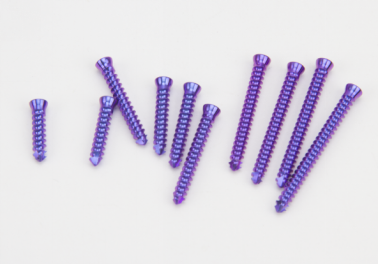

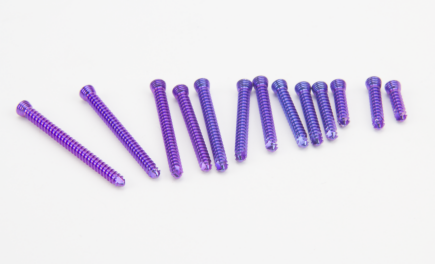

Matching screw:

Φ3.0 cortex screw	Φ3.0 locking screw

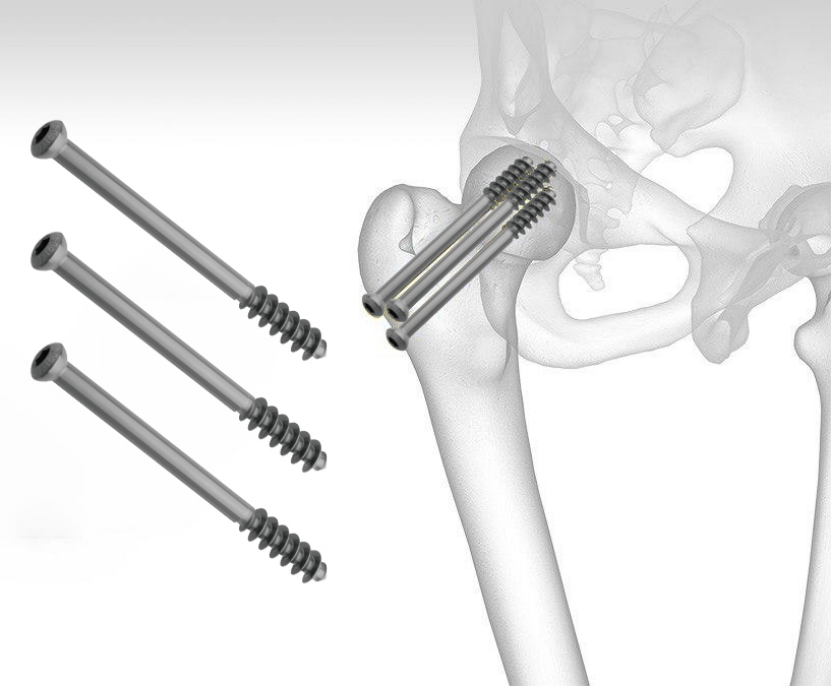

Φ4.0 cancellous screw

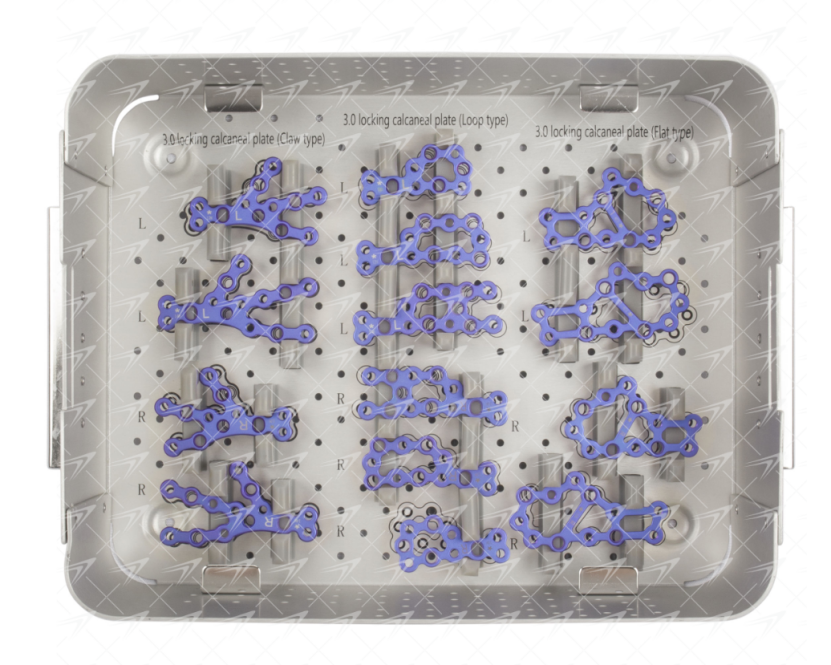

Matching instrument:matched with 3.0 series orthopedic surgical instrument set.

Certificate

Exhibition

Customer Feedback

Packaging and Shipping

Packing Details: inner dialyzing paper + outer plastic bag along with carton box. Or based on client's requirement.

Delivery Details: within 3 -5 working days, the customized product to be negotiated.

Delivery way: by air, FedEx / UPS / DHL / EMS / TNT...

About Us

Introduction & History

Jiangsu Shuangyang Medical Instrument Co., Ltd was founded in 2001, which is specialized in product research, design and manufacturing of orthopedic implant instruments.

Our factory covers total area of 1 8 0 0 0 square meters. We are equipped with DMG five-axis CNC machine, TORNOS CNC longitudinal cutting lathe and other advanced equipments. Meanwhile, we have complete testing equipment including digital projector, fluorescence detector and electronic torsion machine. Based on our advanced machines and processing technology, we can deliver stable and good quality goods to our customers without any delay.

We have passed CE and ISO13485:2016, ISO9001:2015 certification. Besides all of these honored certificates, we pay more attention on our customer's satisfaction, our products have been recognized by doctors, patients and hospitals for the reliability, thoughtfulness, easy usage and effectiveness to shorten the healing period.

Shuangyang company has a motto: Integrity is the base, Customer is the first, we are striving to be the leading supplier of orthopedic medical devices in China and looking forward to working with more valued customers worldwide. Welcome to visit our company at your convenient time.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer with 20+ years experience for R & D, produce, sale and service of Orthopedic implants.

Q: How long is your delivery time?

A: Generally, it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock. Customized goods depend on the specific requirements.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: Why Shuangyang will be your reliable supplier in Orthopedic field in China?

A: We are the FIRST MANUFACTURE who got certificate of MULTI-AXIAL LOCKING PLATE in CHINA!

1.Experience: 20 years for manufacturing orthopedic implants

2. Professional CNC Turning & Mahining: TORNOS(Switzerland), DMG 5-axis(Germany)

3. Certificate: CE/ISO9001/ISO13485/GMP

4. Feedback: Quick feedback within 12 hours

5. Before & After sales Service: Excellent service all the time

6.Technology: Professional technicians, provide OEM & ODM service (personalized customization is available)

Introduction

Precision-Engineered Orthopedic Locking Plates: The Foundation for Stable Healing

Modern orthopedic locking plate systems represent a significant advancement in fracture fixation technology. Their core principle is angular stability—achieved through a threaded interface between the screw head and the plate hole, creating a stable internal fixator. This construct does not rely on friction between the plate and bone, thereby preserving periosteal blood supply and optimizing the biological environment for fracture healing.

Key Features & Clinical Benefits:

Uncompromising Stability: The locked construct provides superior resistance to bending and torsional forces, making it ideal for comminuted fractures and patients with osteoporotic bone, effectively preventing screw loosening and pull-out.

Biological Fixation: Featuring a low-profile design and minimized bone contact, it significantly reduces soft tissue irritation and potential complications, promoting patient comfort.

Surgical Versatility: Innovative combination holes allow the surgeon to employ both locking screws and conventional cortex screws within the same plate. This enables adaptive surgical strategies, from compression to bridge fixation.

Anatomically Contoured: Pre-shaped to match the specific anatomy of the target bone, these plates reduce the need for intraoperative bending, streamline the surgical procedure, and ensure an optimal fit.

In summary, with their unique biomechanical advantages and patient-focused design, locking bone plates provide a reliable solution for complex trauma, periarticular fractures, and revision surgery, forming the cornerstone for early mobilization and accelerated rehabilitation.
