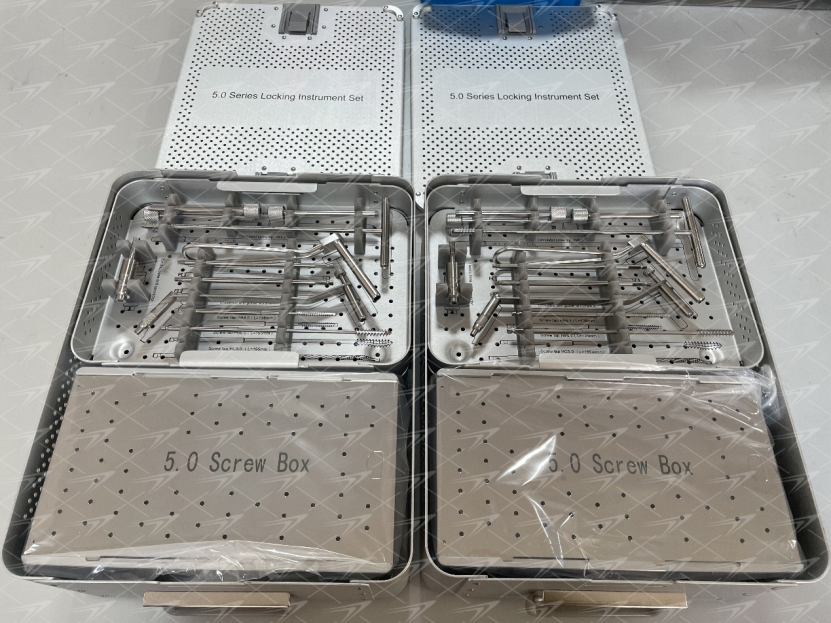

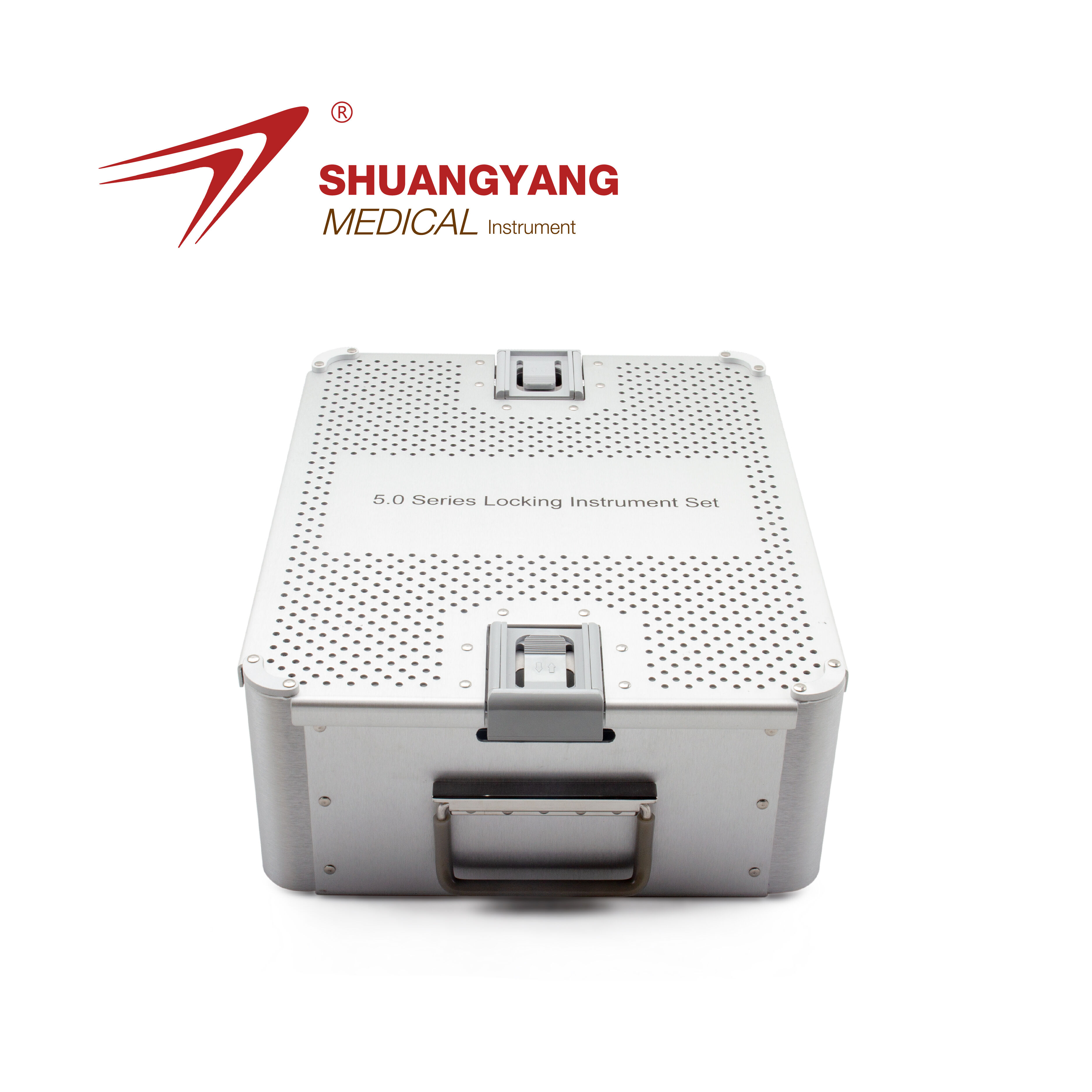

Large Fragment Locking Plate orthopedic instrument Set

Orthopedic Surgical Instruments Large fragment Surgical Instrument Set

Primary Indications: Treatment of fractures involving the shafts and metaphyses of major long bones, including the femur, tibia, humerus, and pelvis.

Core Advantages and Features

1. Delivers ultimate mechanical stability: This represents its fundamental value. The locking compression technology employed in this kit constructs a robust “internal fixation scaffold” within osteoporotic or severely comminuted fractures, providing unparalleled resistance to bending and rotation.

2. Locking Hole Design for Maximum Flexibility: A hallmark of modern large locking systems. A single plate hole accommodates both standard cortical screws for axial compression of fracture fragments and locking screws for angular stability. This “hybrid fixation” strategy allows surgeons to flexibly select options based on specific fracture segment needs during the same procedure, optimizing fixation outcomes.

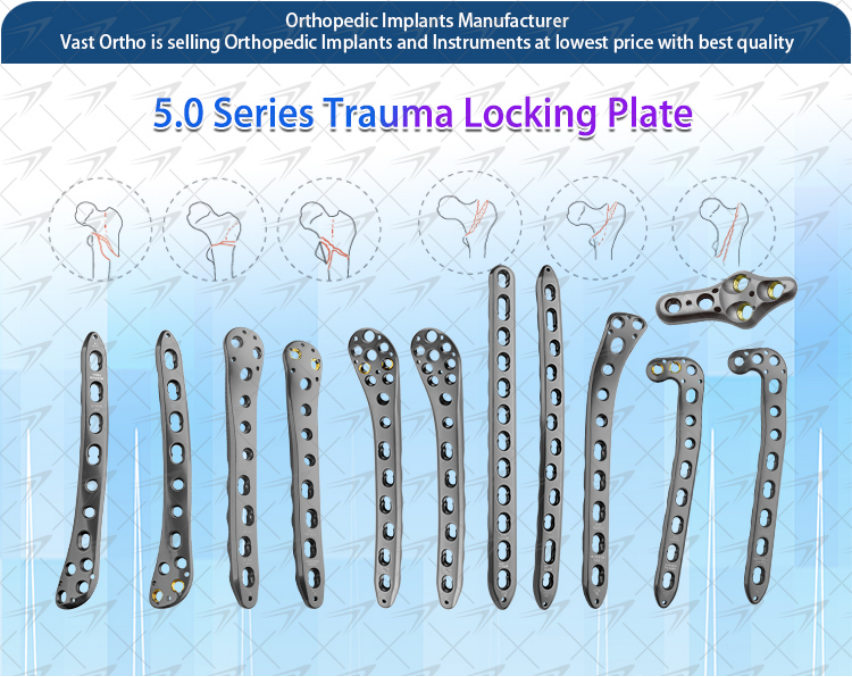

3. Comprehensive Anatomically Pre-Shaped Plates: For complex anatomical regions like the distal femur, proximal tibia, and proximal humerus, the kit offers multiple anatomically pre-shaped plates. These significantly reduce intraoperative shaping time, achieve a more conforming fixation, and facilitate anatomical reduction.

4. Complete Out-of-the-Box Integrity: As a comprehensive instrument system, it includes all specialized tools required for the entire surgical process—from reduction and temporary fixation to precise shaping (e.g., dedicated plate bending forceps), drilling, depth measurement, tapping, and final implantation and removal. This ensures standardized, efficient workflow while minimizing the risk of surgical delays caused by incompatible instruments.

Product Paramenters:

Clinical Applications

Femur: Intertrochanteric fractures, subtrochanteric fractures, comminuted femoral shaft fractures, proximal/intercondylar fractures of the distal femur.

Tibia: Comminuted tibial plateau fractures, complex tibial shaft fractures, pilon fractures (distal tibia).

Other: Severe ankle fractures, fixation following lower limb deformity correction osteotomies.

In summary, the large locking plate instrument set for the lower extremity is a highly specialized professional tool system designed to address the most demanding biomechanical challenges. Its value lies in integrating engineering strength, anatomical conformity, and biological protection principles, serving as the cornerstone for modern lower limb trauma orthopedics and reconstructive surgery.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is within 5 working days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:Why Shuangyang will be your reliable orthopedic supplier in China ?

1.Experience:More than 25 years for manufacture orthopedic implants

2. Production machines: TORNOS(Switzerland), DMG (Germany)

3. Certificate: CE/ISO9001/ISO13485/GMP

4. Feedback: Quick feedback within 12 hours

5. Service: Excellent service all the time

6.Technology: Professional engineers, OEM&ODM service (personalized customization is available)
