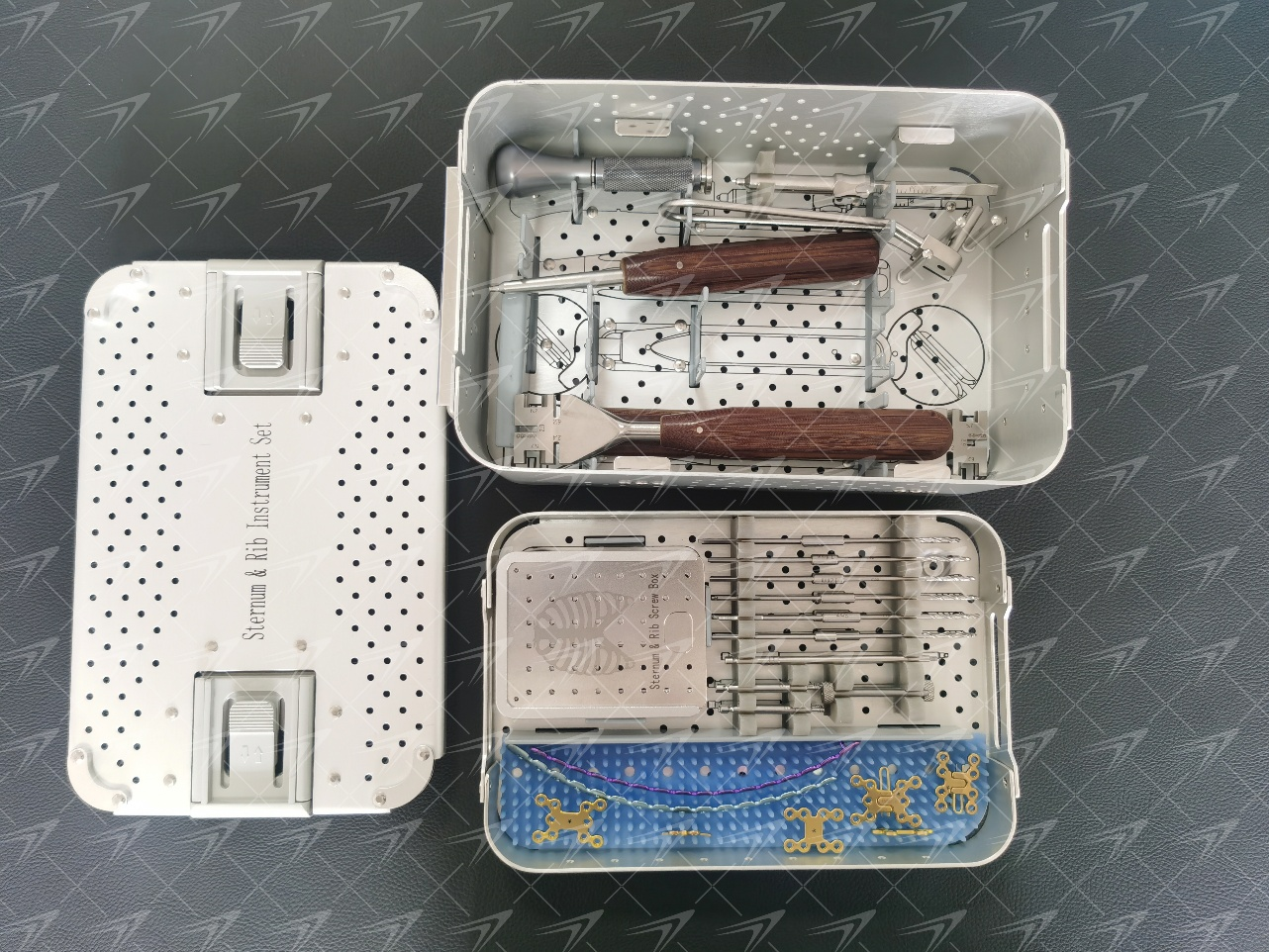

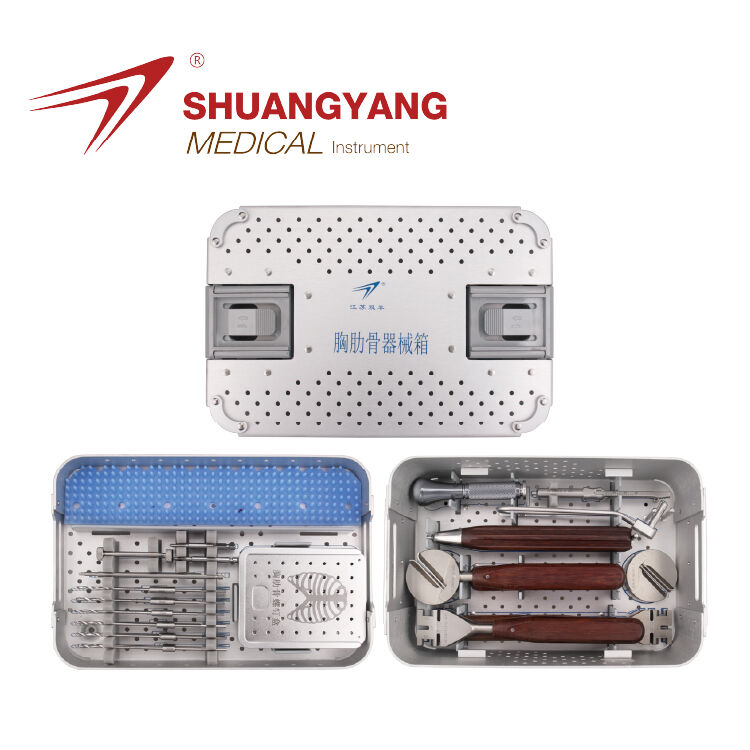

Sternum and Rib Locking Plate Instrument Set
The Thoracic Locking Plate Instrument Set constitutes a specialised system for internal fixation procedures addressing fractures or deformities of the chest wall (ribs and sternum). It differs significantly from the locking plate instrument sets previously encountered for extremities, with its design and advantages being entirely tailored to the unique, dynamic and anatomically complex region of the thoracic cage.
Technical Specifications
Item No. |
Name |
Quantity |
50.03.023.00 |
Φ2.3 medical drill bit (Limited type) |
2 |
50.03.024.00 |
Φ2.3 medical drill bit (Limited type) |
2 |
50.03.025.00 |
Φ2.3 medical drill bit (Limited type) |
2 |
50.03.026.00 |
Φ2.3 medical drill bit (Limited type) |
2 |
50.03.027.00 |
Φ2.3 medical drill bit (Limited type) |
2 |
50.03.028.00 |
Φ2.3 medical drill bit (Limited type) |
2 |
50.15.004.00 |
Quadrangle screwdriver |
1 |
50.03.004.00 |
Φ2.3x50mm Drill guide |
2 |
50.03.029.00 |
HC3.0 Temporary holder |
3 |
50.01.008.00 |
0-30mm Depth guage |
1 |
50.03.006.00 |
Φ4.0x35mm Percutaneous drill guide |
1 |
50.01.003.00 |
Straight quick coupling handle |
1 |
50.03.030.00 |
Sternum & rib screw box |
1 |
50.03.013.00 |
HC3.0 Plate holder compression spreader |
1 |
50.03.011.00 |
L=190mm Plate cutter |
2 |
50.03.012.00 |
L=200mm Plate bender |
2 |
50.03.031.00 |
Sternum & Rib Instrument Box |
1 |
Advantages of the Modern Sternal and Rib Locking Plate Instrument Set
The Thoracic Rib Locking Plate Instrument Set is a specialised system for internal fixation surgery addressing fractures or deformities of the chest wall (ribs and sternum).
Anatomical Adaptability
Provides pre-shaped anatomical plates that conform to the typical rib contour, minimising intraoperative bending and enhancing surgical efficiency.
Fixation Stability
Employing locking screw technology, a robust angular stability structure is formed between the screws and plate, providing stable fixation for both normal and osteoporotic ribs.
Surgical Technique and Trauma
Supports minimally invasive percutaneous osteotomy (MIPO). Utilising specialised instruments and a 90-degree screwdriver, procedures can be completed through small incisions, reducing soft tissue dissection and lowering the risk of neurovascular injury.
Clinical Outcomes
Achieves robust fixation, permitting early coughing, expectoration and ambulation. Effectively reduces severe complications such as pulmonary infection and flail chest, accelerating recovery.
A: Our products comply with international regulations and meet the necessary industry certifications. We are also certified to CE,ISO13485, ISO9001 and others. You can view more details of the certifications on the home page of our website.
A: shuangyang has a reliable shipping and logistics network to ensure prompt and secure delivery. Our team works closely with reputable carriers to provide efficient shipping services in around 120 countries.
A: The minimum order quantity may vary depending on the product and customizationrequirements, Pleasecontact our customer support team for specifc details related to your desired products.
