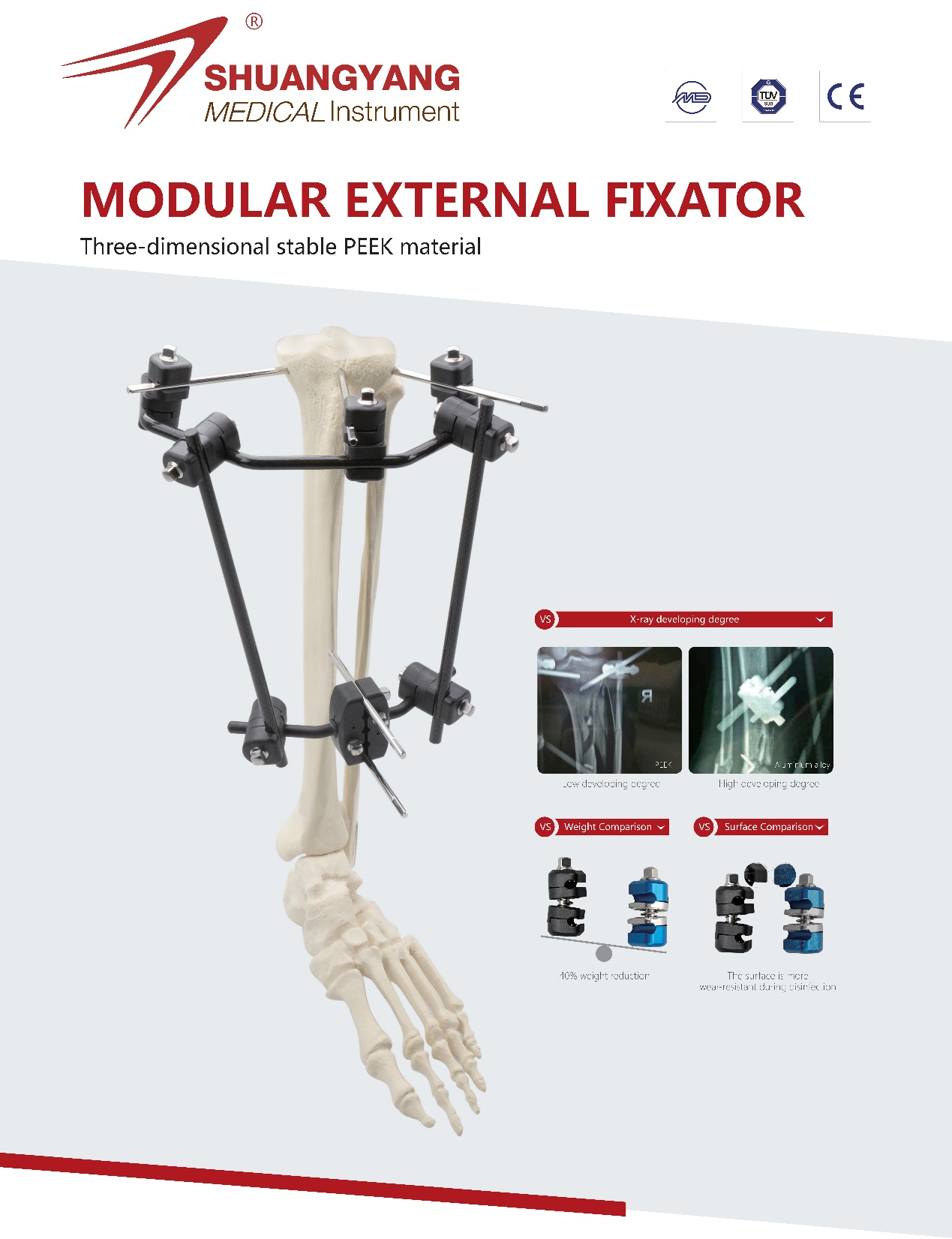

The external fixation device is used to percutaneously penetrate the needle and bone to form a composite system to treat fractures, correct bone and joint deformities and limb tissue extension according to the theory of stressstimulated tissue regeneration and reconstruction under the principle of minimally invasive surgery.
Scope of application
It can be used in the treatment of limb and pelvic trauma or bone disease if cooperated with Bone screw. For example, with severe soft tissue trauma and late treatment of open
fractures, fractures with severe burns, fracture infections or non-healing, fractures requiring extension of limb length, arthrodesis, etc.
Production features
● Easy to operate, flexible combination, can build a threedimensional stable external fixation system
● According to the adaptation symptoms, the stent can be freely assembled during the operation, and the components can be added to the frame at any time.
● Aluminum alloy or PEEK fix clamp help reduce the overall frame weight
● PEEK fix clamp has low developing degree, easy operation.
● Aluminum alloy and carbon fiber connecting rod build elastic frame, to reduce stress concentration.

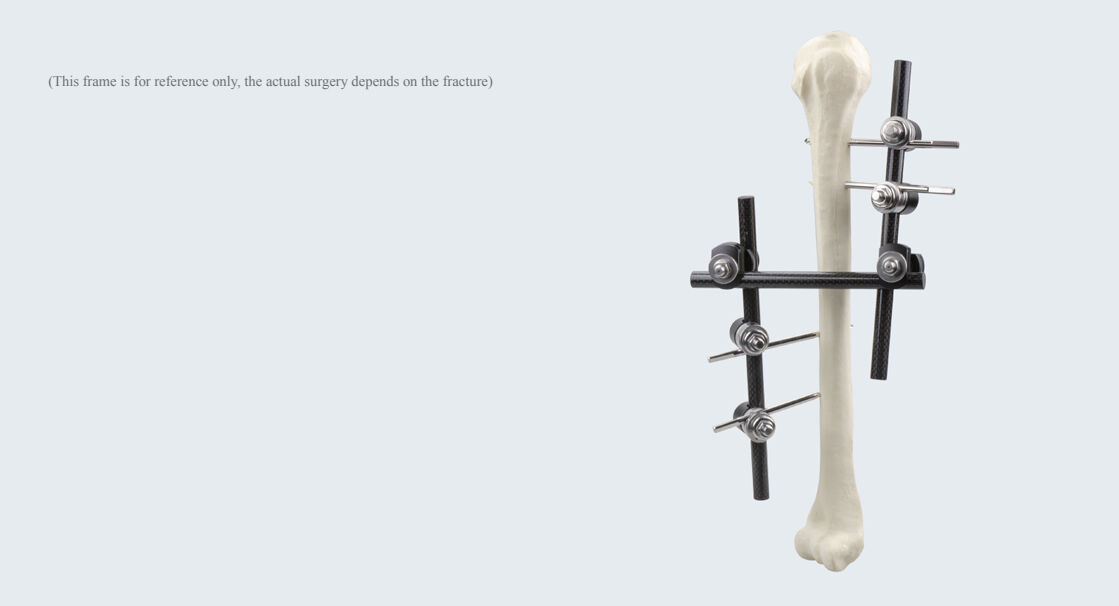

Humerus backbone frame-external fixator
Stable fixation of the ankle joint fracture requires minimal external fixation, possibly in combination with internal fixation. Put three 5mm bone screws independently into the humeral shaft and calcaneus, and put one 4mm bone screw in the first metatarsal. Connect all the bone screws with four pin to rod, then connect the front components into a triangular frame with two lever clamps VII and a Ф8 L200mm connecting rod (straight type), finally lock.
Technical Specifications：
Ocder code |
Name |
Specification |
Quantity |
20.20.1511201.200 |
Pin to rod coupling XV |
2 holes Ф11/Ф6 |
4 |
20.20.1711201.200 |
Rod to rod coupling XVII |
2 holes Ф11 |
2 |
20.10.0111150.300 |
Connecting rod(straight) |
Ф11 L150 |
1 |
20.10.0111200.300 |
Connecting rod(straight) |
Ф11 L200 |
2 |
19.32.515.4251001 |
Bone screw |
Ф4.0×100 |
2 |
19.32.513.0501001 |
Bone screw |
Ф5.0×100 |
2 |
Image Details
Certificate
Exhibition
Customer Feedback
Packaging and Shipping
Packing Details: inner dialyzing paper + outer plastic bag along with carton box. Or based on client's requirement.
Delivery Details: within 3 -5 working days, the customized product to be negotiated.
Delivery way: by air, FedEx / UPS / DHL / EMS / TNT...
Introduction & History
Jiangsu Shuangyang Medical Instrument Co., Ltd was founded in 2001, which is specialized in product research, design and manufacturing of orthopedic implant instruments.
Our factory covers total area of 1 8 0 0 0 square meters. We are equipped with DMG five-axis CNC machine, TORNOS CNC longitudinal cutting lathe and other advanced equipments. Meanwhile, we have complete testing equipment including digital projector, fluorescence detector and electronic torsion machine. Based on our advanced machines and processing technology, we can deliver stable and good quality goods to our customers without any delay.
We have passed CE and ISO13485:2016, ISO9001:2015 certification. Besides all of these honored certificates, we pay more attention on our customer's satisfaction, our products have been recognized by doctors, patients and hospitals for the reliability, thoughtfulness, easy usage and effectiveness to shorten the healing period.
Shuangyang company has a motto: Integrity is the base, Customer is the first, we are striving to be the leading supplier of orthopedic medical devices in China and looking forward to working with more valued customers worldwide. Welcome to visit our company at your convenient time.
