humerus intramedullary nail-0
Home> Intramedullary Nail

Humerus intramedullary nail

Medical Device Classification:Class Iii
After-sales Service:Return and Replacement
Brand:shuangyang
Certification:CE,ISO
Material:Titanium alloy
MOQ:1 Set
OEM:Accept OEM
  • Product Description
  • FAQ
  • Related Products

Product Description

Unlike traditional plates placed externally on bones, intramedullary nails serve as an “internal support” positioned along the bone's mechanical axis. This centralized fixation method minimizes the lever arm, providing exceptional resistance to bending and rotation. It allows patients to initiate functional exercises and partial weight-bearing early on, significantly accelerating recovery. Additionally, the procedure typically employs minimally invasive techniques, with insertion through small incisions distant from the fracture site. This approach maximally preserves blood supply and soft tissue integrity around the fracture, creating an optimal biological environment for bone healing. Consequently, the risk of infection and nonunion is significantly reduced.

Humerus intramedullary nail



Technical Specifications:

Name

Standard Anatomic Humeral Interlocking Nail(Left,Right Type)

material

Titanium Alloy

Diameter

Φ7.0

Φ7.5

Φ8.0

Φ9.0

Length(mm)

160

Name

Extended Anatomic Humeral Interlocking Nail(Left,Right Type)

material

Titanium Alloy

Diameter

Φ7.0

Φ8.0

Length(mm)

180mm/195mm/210mm/225mm/240mm/255mm/270mm/285mm/300mm/315mm

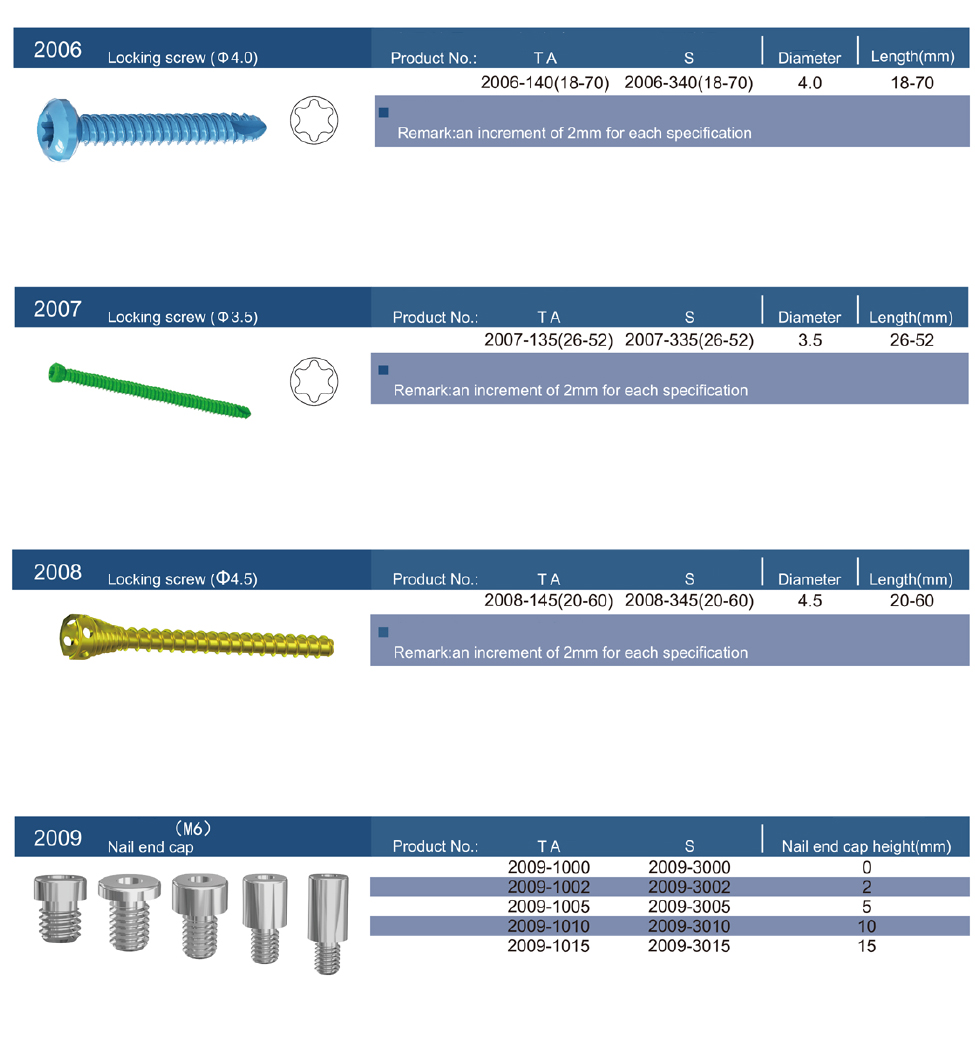

Matching instruments



Conclusion

Clinical studies demonstrate that compared to locking plates, intramedullary nail systems significantly reduce intraoperative blood loss, shorten surgical and fracture healing times, and better preserve the humeral neck-shaft angle when treating proximal humeral fractures in adults, thereby facilitating shoulder joint function recovery. The humeral intramedullary nail (particularly multidimensional locking systems) achieves mechanical stability through its design principles of “intramedullary fixation, minimally invasive implantation, and anatomical optimization.” This approach maximizes biological preservation and facilitates early functional recovery, making it an optimal choice for treating complex proximal humeral fractures and elderly patients with osteoporosis.

FAQ

  • Q: Quality

    A: Our products comply with international regulations and meet the necessary industry certifications. We are also certified to CE,ISO13485, ISO9001 and others. You can view more details of the certifications on the home page of our website.

  • Q: 0rder

    A: shuangyang has a reliable shipping and logistics network to ensure prompt and secure delivery. Our team works closely with reputable carriers to provide efficient shipping services in around 120 countries.

  • Q: OEM/ODM

    A: The minimum order quantity may vary depending on the product and customizationrequirements, Pleasecontact our customer support team for specifc details related to your desired products.
